How To Configuration Dynamic Routing RIP on Cisco Packet Tracer

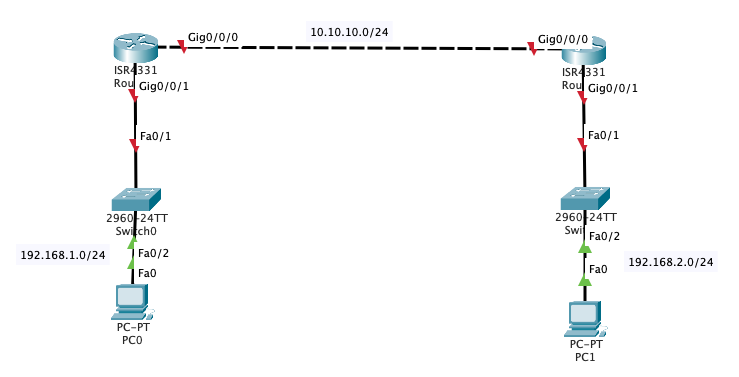

In this tutorial I’ll discuss about how to configuration of dynamic routing protocol using RIP on cisco packet tracer. If in preceding tutorial we have configured static routing where we must specify destination network and gateway, on the dynamic routing we only need to advertise each router’s network. The following is the topology are used :

First, configure ip address on Router and PC.

Configure IP Address on R1 :

R1(config)#int g0/0/0
R1(config-if)#ip add 10.10.10.1 255.255.255.0
R1(config-if)#no shutdown
R1(config-if)#exit
R1(config)#int g0/0/1
R1(config-if)#ip add 192.168.1.1 255.255.255.0
R1(config-if)#no shutdown

Configure IP Address on R2 :

R2(config)#int g0/0/0
R2(config-if)#ip add 10.10.10.2 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#exit
R2(config)#int g0/0/1
R2(config-if)#ip add 192.168.2.1 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#exit

Configure IP Address on PC0 :

Configure IP Address on PC1 :



Configure Routing RIP on R1 :

R1(config)#router rip
R1(config-router)#version 2
R1(config-router)#network 10.10.10.0
R1(config-router)#network 192.168.1.0
R1(config-router)#no auto-summary
R1(config-router)#exit



Configure Routing RIP on R2 :

R2(config)#router rip
R2(config-router)#version 2
R2(config-router)#network 10.10.10.0
R2(config-router)#network 192.168.2.0
R2(config-router)#no auto-summary
R2(config-router)#exit

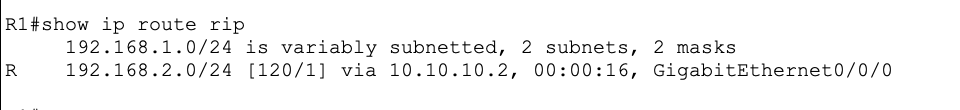

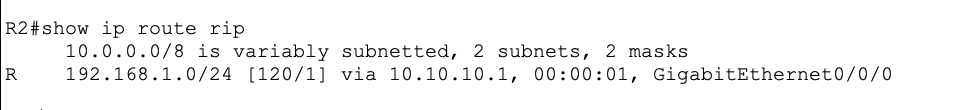

Show Routing RIP on R1 and R2 :



Now test ping between PC0 and PC1 :

Connection has been successfull.
