On the previous article we have discuss about firewall policy for the permit access between internal network. And in this article we want to discuss about how to configure NAT to permit internal/LAN network to have internet access.

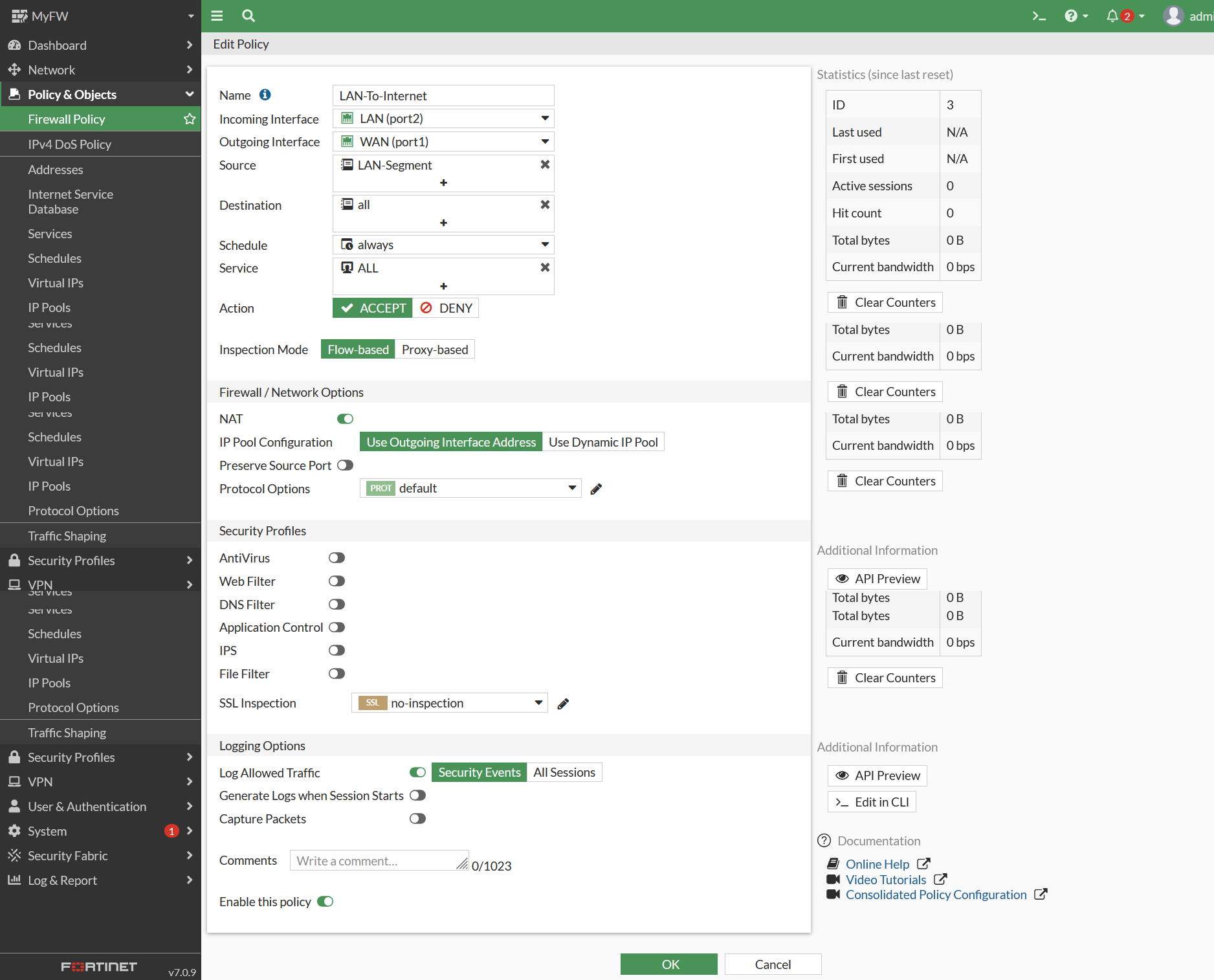

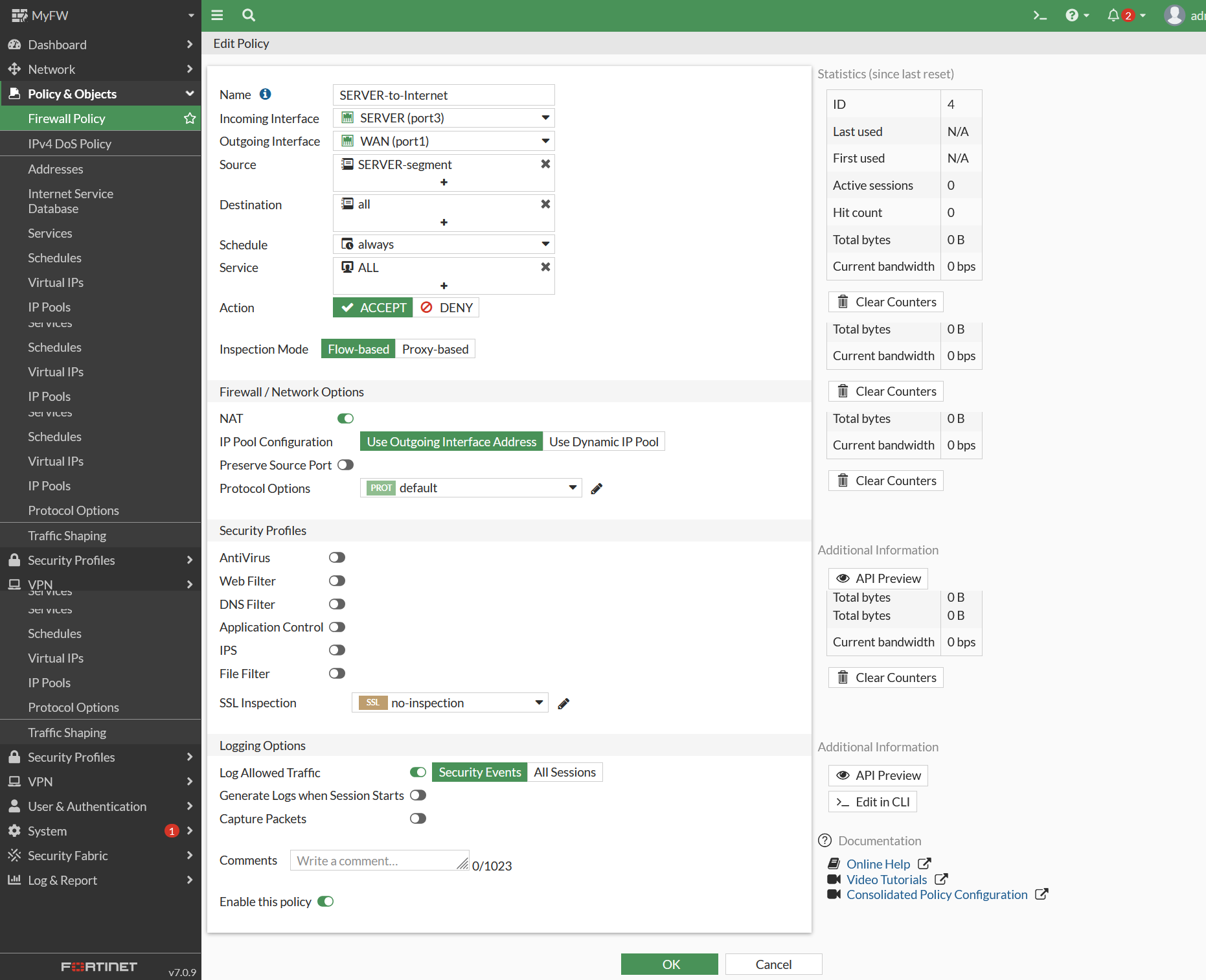

To configure that, Select on the Policy & Objects -> Firewall Policy -> Create New

Configure IP DNS on PC and SERVER

PC> show ip
NAME        : PC[1]
IP/MASK     : 10.0.1.2/24
GATEWAY     : 10.0.1.1
DNS         : 1.1.1.1
MAC         : 00:50:79:66:68:20
LPORT       : 20000
RHOST:PORT  : 127.0.0.1:30000
MTU         : 1500
PC>

SERVER> show ip
NAME        : SERVER[1]
IP/MASK     : 172.16.100.2/24
GATEWAY     : 172.16.100.1
DNS         : 1.1.1.1
MAC         : 00:50:79:66:68:21
LPORT       : 20000
RHOST:PORT  : 127.0.0.1:30000
MTU         : 1500
SERVER>

Then Test ping from PC & Server to outside network. As shown bellow the PC and SERVER has been successful connect to outside network.

PC> ping 8.8.8.8
84 bytes from 8.8.8.8 icmp_seq=1 ttl=254 time=17.353 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=254 time=4.203 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=254 time=10.413 ms
PC> ping google.com
google.com resolved to 172.31.254.100
84 bytes from 172.31.254.100 icmp_seq=1 ttl=62 time=8.482 ms
84 bytes from 172.31.254.100 icmp_seq=2 ttl=62 time=12.825 ms
84 bytes from 172.31.254.100 icmp_seq=3 ttl=62 time=10.055 ms
PC>

SERVER> ping 8.8.8.8
84 bytes from 8.8.8.8 icmp_seq=1 ttl=254 time=12.051 ms
84 bytes from 8.8.8.8 icmp_seq=2 ttl=254 time=8.566 ms
84 bytes from 8.8.8.8 icmp_seq=3 ttl=254 time=14.933 ms
SERVER> ping youtube.com
youtube.com resolved to 172.31.254.200
84 bytes from 172.31.254.200 icmp_seq=1 ttl=62 time=2.410 ms
84 bytes from 172.31.254.200 icmp_seq=2 ttl=62 time=6.836 ms
84 bytes from 172.31.254.200 icmp_seq=3 ttl=62 time=9.577 ms
SERVER>
